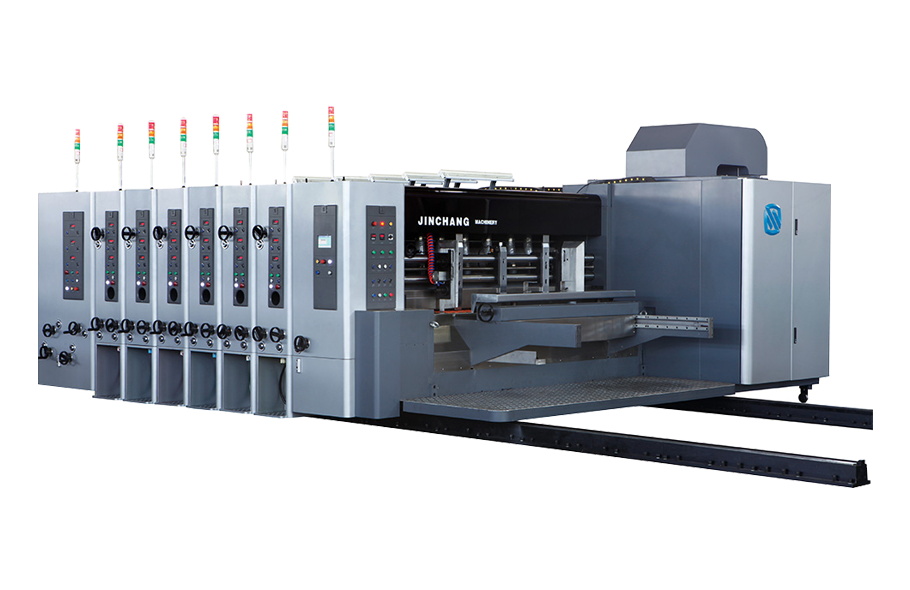

AUTOMATIC FLEXO PRINTING & SLOTTING & DIE CUTTING MACHINE OF VISTEN

Touch screen and electric dual system control operation. Servo control front feeding, stable performance, easy to operate. PLC control and servo motor adjustment in each part.

Keyword:

AUTOMATIC FLEXO PRINTING & SLOTTING

Printing inspection all-in-one machine

Category:

Sales Hotline:

AUTOMATIC FLEXO PRINTING & SLOTTING & DIE CUTTING MACHINE OF VISTEN

VISTEN automatic high speed waterborne printing groove (die cutting) machine

Features:

Touch screen and electric dual system control operation.

Servo control front feeding, stable performance, easy to operate.

PLC control and servo motor adjustment in each part.

One key positioning, automatic return to zero, memory reset and other functions.

Transmission gear high quality alloy steel (20CrMnTi), hardness hrc58-62.

L drive structure adopts double oil pump circulation lubrication; Planetary phase adjustment mechanism.

Can implement remote maintenance and connect the plant management system.

Technical parameters:

VISTEN--model		1800/2000*800	1800/2200*1000	2500*1200 /1400/1600	2800*1200 /1400/1600	3200 *1600
Mechanical maximum speed（Pcs/min）		280	240	200/170/150	200/170/150	150
Maximum feed size（mm）		1800/2000*770	1800/2200*970	2500*1170 /1370/1570	2800*1170 /1370/1570	3200*1570
Minimum feed size（mm）		650*250	650*270	650*330 /350/400	650*330 /350/400	650*400
Paper feed size（mm）		1800/2000*1000	1800/2200*1200	2500*1400 /1600/1800	2800*1400 /1600/1800	3200*1800
Range of feed thickness（mm）		2-10	2-10	2-10	2-10	2-10
Maximum print size（mm）		1750/1950*720	1750/2150*920	2450*1120 /1320/1520	2750*1120 /1320/1520	3150*1520
Standard printing thickness（mm）		7.2	7.2	7.2	7.2	7.2
Minimum gap spacing（mm）	Is a knife（mm）	120120 120*120	120120 120*120	140140 140*140	140140 140*140	140140140*140
Minimum gap spacing（mm）	The knife（mm）	20080 200*80	20080 200*80	24080 240*80	24080 240*80	24080 240*80
Maximum die-cutting size（mm）		1700/1900*720	1700/2100*920	2400*1120 /1320/1520	2700*1120 /1320/1520	3100*1520
